Structural Steel
H Beam
Wide-flange hot-rolled sections for primary structural frames.

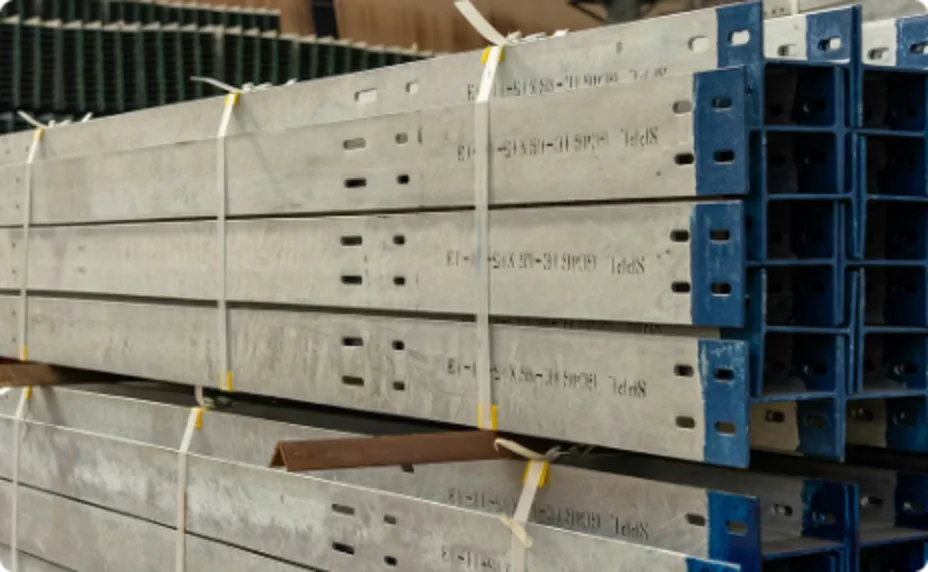

Representative photo of h beam from SHEDAR partner mills.
Product Overview
H-beams (wide-flange beams) are the primary load-bearing sections used in steel-framed buildings, industrial plants, bridges, and high-rise construction. We supply standard HEA / HEB / HEM sections per EN 10034 plus GB hot-rolled sections.
Standards
- GB/T 11263
- EN 10034
- ASTM A6 / A36
- JIS G3192
Common Grades
Specifications
| Parameter | Range / Value |
|---|---|
| Section Height (H) | 100 – 1,100 mm |
| Flange Width (B) | 100 – 400 mm |
| Web Thickness (t1) | 5 – 21 mm |
| Flange Thickness (t2) | 7 – 40 mm |
| Length | 6 – 18 m (custom up to 24 m) |
| Surface | Hot-rolled mill finish, optional shot-blasted |
* Specifications shown are typical ranges. Mill selection and exact dimensions can be tailored to your project requirements.
Typical Applications
- Steel-framed buildings
- Industrial plants and warehouses
- Bridges and flyovers
- High-rise construction
- Tower and column fabrication
Packaging & Loading
Standard export packaging and container-loading plans for H Beam. Custom packaging (wooden crate, anti-rust oil, bundle tags with heat number) available on request.
Packaging
- Bare bundles, 4–6 metal straps per bundle, 2–3 t per bundle (typical)
- End caps optional; mill marking on each piece
- Wooden dunnage at bundle base for forklift handling
Container Loading
- 20'GP: ~20–22 t; 40'GP: ~24–26 t; 40'HQ: ~26–28 t
- Mixed loading with other long products available on request
- Breakbulk and flat-rack options for sections >12 m
Note: Section length up to 18 m standard; custom lengths up to 24 m on special mill order.
Supply Capability
Export-Ready
FOB, CFR, CIF, and DDP terms available. Dedicated container-loading plans for every grade.
Lead Time
Typical production lead time 15–30 days after order confirmation. Express shipments on request.
Quality Guarantee
MTC per EN 10204 3.1 with every shipment. Third-party SGS / BV / TUV inspection available.
Need H Beam for Your Next Project?
Tell us the grade, size, quantity, and destination port. We respond within 12 working hours with a quotation, lead time, and delivery terms tailored to your market.
Quality Documentation
Mill Test Certificate per EN 10204 3.1 with every shipment. Third-party inspection (SGS / BV / TUV) on request.
Export Documentation
Commercial invoice, packing list, certificate of origin, and full shipping documents prepared with each shipment.
