PPGI & Color Coated Steel
PPGI Coil
Pre-painted galvanized steel coil for roofing, cladding, and decorative applications.

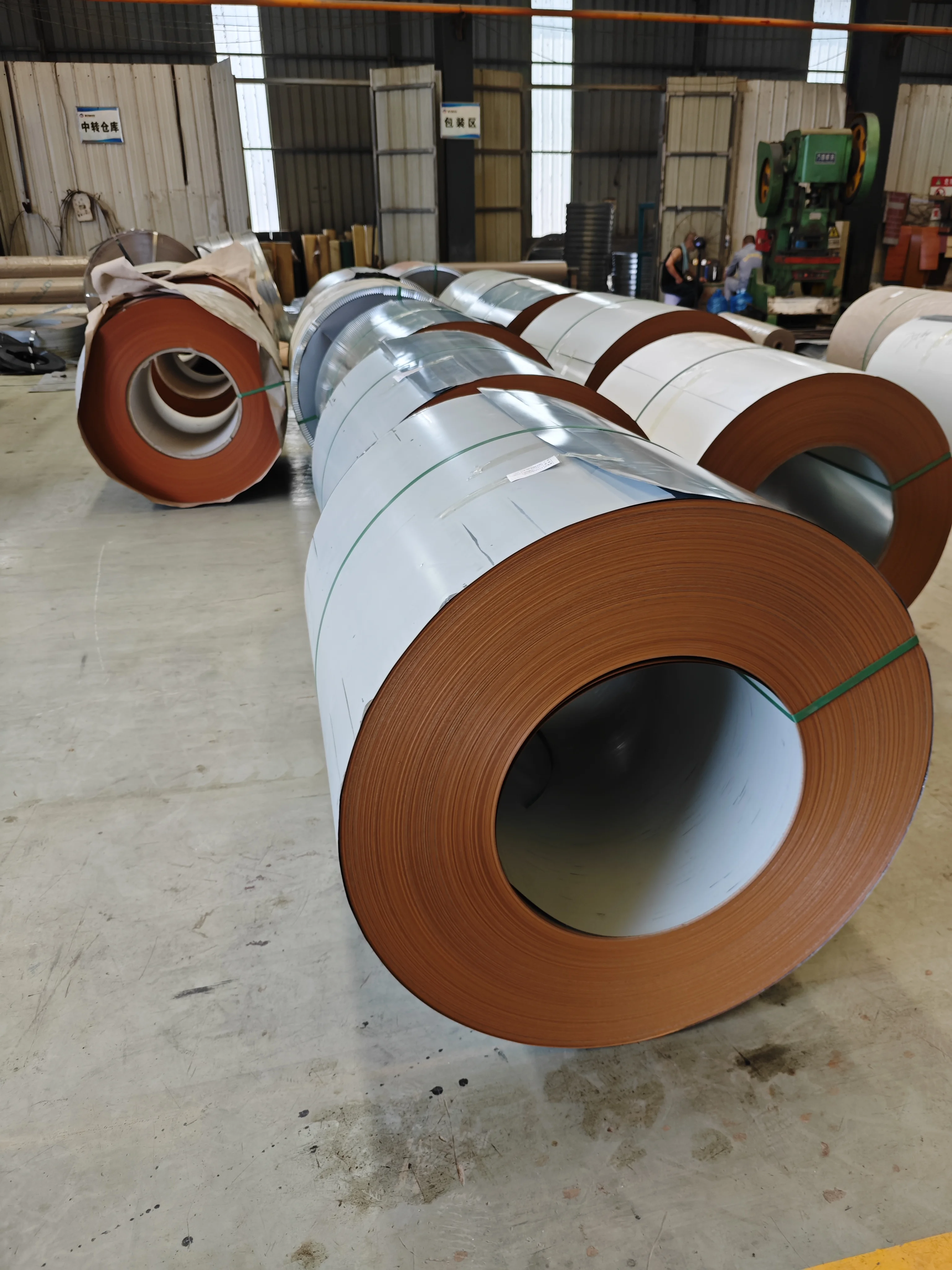

Representative photo of ppgi coil from SHEDAR partner mills.
Product Overview
PPGI (pre-painted galvanized iron) coil is produced by applying a continuous paint coating over galvanized steel. Available in a wide range of RAL colors with PE, SMP, or PVDF top coatings. Ideal for visible architectural applications where color and corrosion resistance are required together.
Standards
- GB/T 12754
- ASTM A755
- EN 10169
- JIS G3312
Common Grades
Specifications
| Parameter | Range / Value |
|---|---|
| Substrate Thickness | 0.14 – 1.2 mm |
| Width | 600 – 1,250 mm |
| Top Coating | PE (15–25 μm), SMP, PVDF |
| Back Coating | Epoxy / PE 5–10 μm |
| Colors | RAL standard, custom on request |
| Coil Weight | 2 – 5 t |
* Specifications shown are typical ranges. Mill selection and exact dimensions can be tailored to your project requirements.
Typical Applications
- Roofing sheets and tiles
- Wall cladding / sandwich panels
- Roller shutter doors
- Garage doors
- Decorative interior panels
- Appliance casings
Supply Capability
Export-Ready
FOB, CFR, CIF, and DDP terms available. Dedicated container-loading plans for every grade.
Lead Time
Typical production lead time 15–30 days after order confirmation. Express shipments on request.
Quality Guarantee
MTC per EN 10204 3.1 with every shipment. Third-party SGS / BV / TUV inspection available.
Need PPGI Coil for Your Next Project?
Tell us the grade, size, quantity, and destination port. We respond within 12 working hours with a quotation, lead time, and delivery terms tailored to your market.
Quality Documentation
Mill Test Certificate per EN 10204 3.1 with every shipment. Third-party inspection (SGS / BV / TUV) on request.
Export Documentation
Commercial invoice, packing list, certificate of origin, and full shipping documents prepared with each shipment.
